Span (Telescopic Span)

Size Min. Mtr. Max. Mtr.
ESO + ESI 1.75 2.70
ESO + SI 2.35 3.45
ESO + ESI 2.40 3.45
SO + SI 2.46 4.15
SO + LI 3.05 4.75
LO + SI 3.15 4.90
LO + SI 3.15 5.50

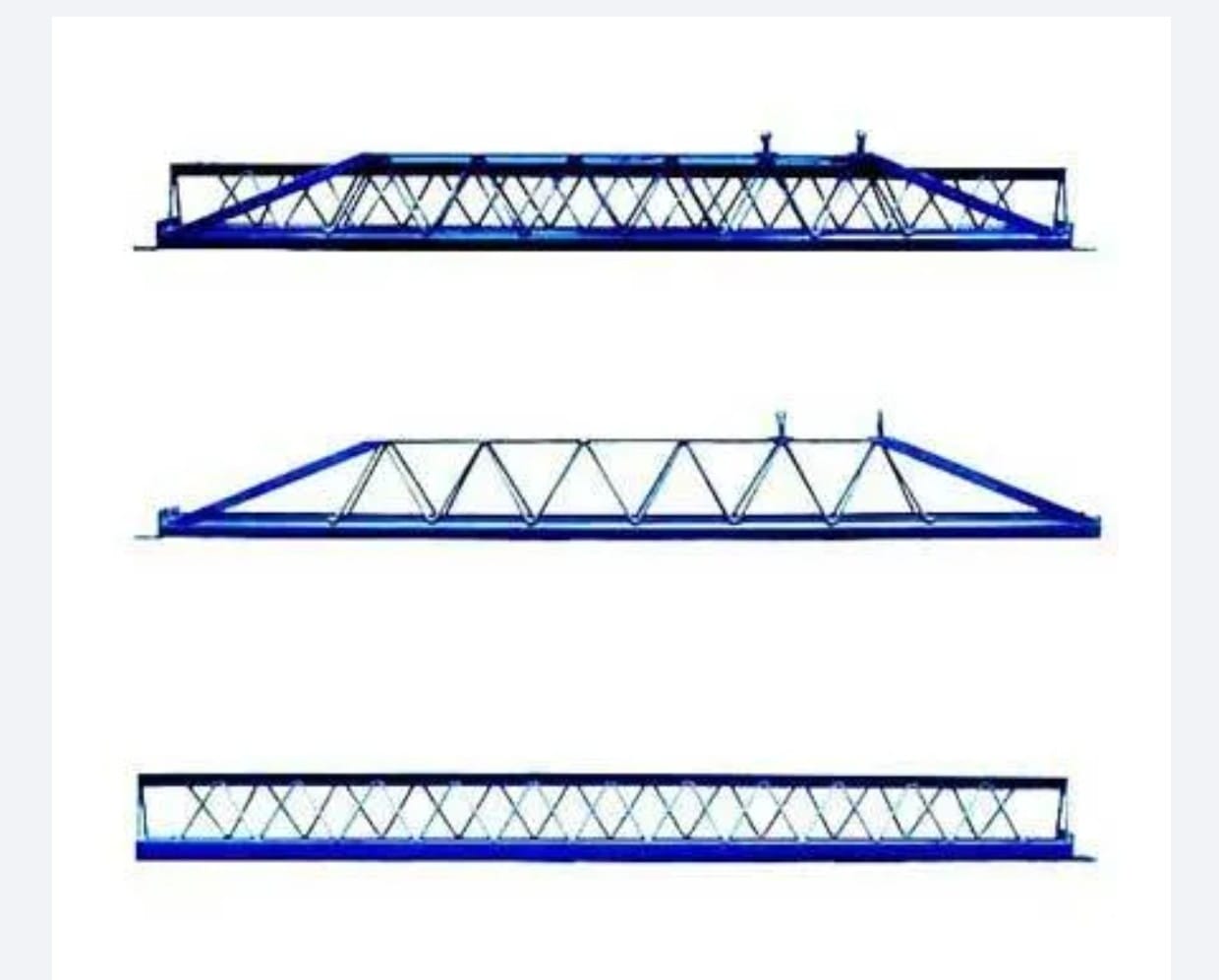

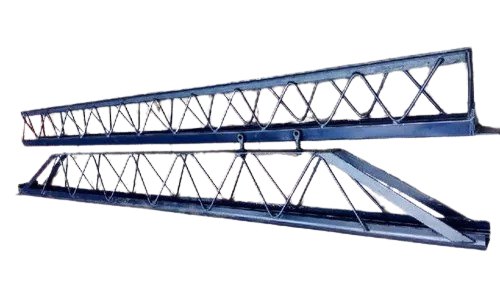

Adjustable Telescopic Span

Adjustable Telescopic Spans are widely used in shuttering systems to support floor forms during slab construction. These spans are designed to provide strong support, easy handling, and quick installation, making them highly suitable for construction site applications.

Manufactured using 2 mm sheet lattices with 10 mm bars, main bars of 14 mm, and 40 × 5 mm T-section supports, they ensure strength, stability, and reliable load-bearing capacity.

These spans are easy to handle, transport, and erect, providing maximum safety with minimal supervision. Available in various sizes and specifications to meet different project requirements.
