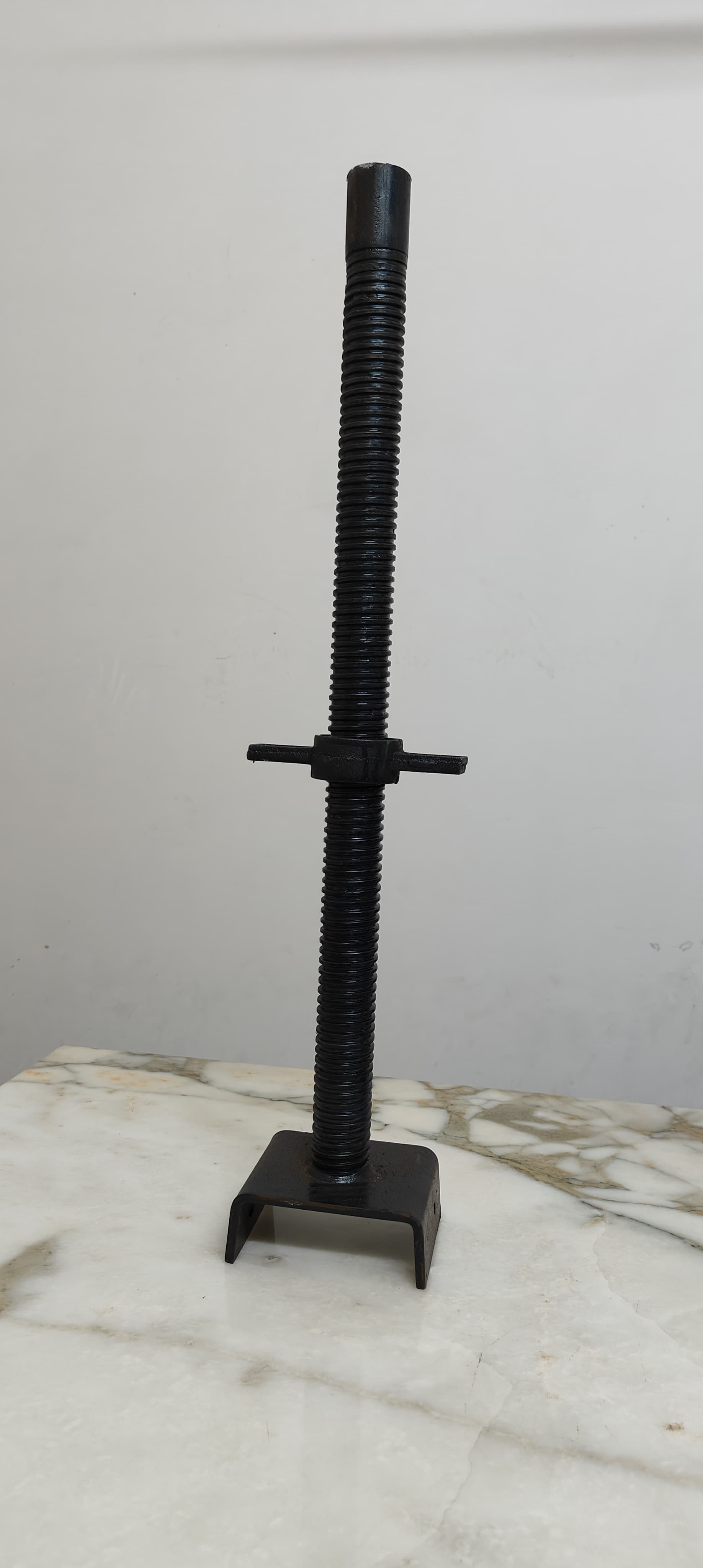

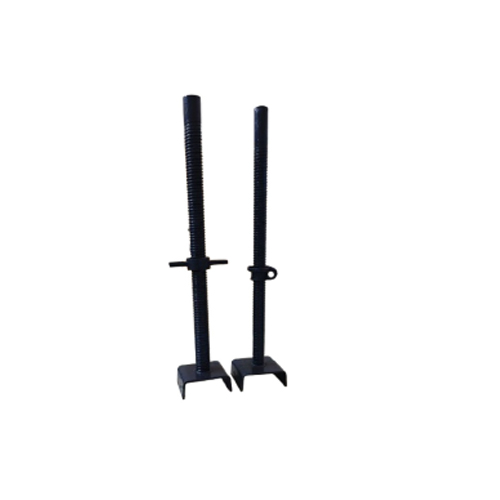

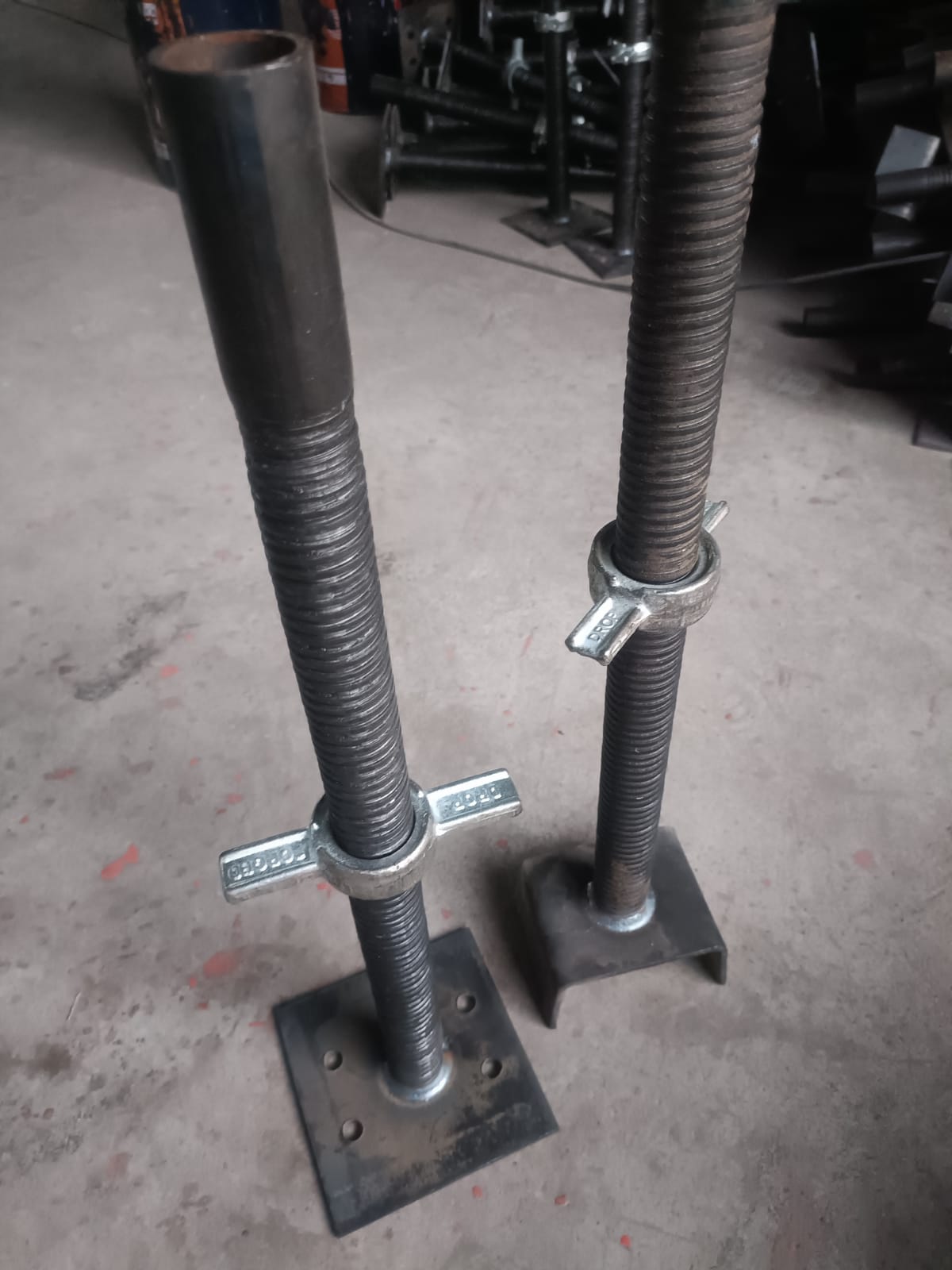

Adjustable Jacks and U-Heads are used at the top of scaffolding systems to provide additional height adjustment of up to 600 mm, ensuring proper leveling and stable support during construction work.
Manufactured from high-grade MS material, these components are known for their strong construction, durability, and easy installation. The Adjustable U Jack (U- Head) is fabricated using 28 mm, 30 mm, 32 mm, 36 mm, and 38 mm Ø MS bars, with the U-head made from 100 × 5 mm MS flat and fitted with a malleable cast iron cup type double-handle light/heavy-duty nut.
Available in both Hollow and Solid types, with bar lengths of 350 mm, 450 mm, and 600 mm, suitable for various scaffolding and shuttering support requirements.
